Reduce costs & increase
decarbonization by

OPTIMISING THE PERFORMANCE
OF YOUR ENGINE

HEINZMANN Automation - Experts in Engine Management!

For more than 100 years, HEINZMANN has been developing and producing extremely efficient actuators with different power levels and modes of operation, covering all areas of application. Our renowned and marine certified electrical and hydraulic actuators can be easily installed in any type of engine and are suitable for use as original equipment or for retrofits.They are perfect in combination with HEINZANN engine control units.

loading...
Hydraulic Actuators for Marine Engines

RE 2231-1GH

RE 2222-3G

RE 2223-3G

Hydraulic Actuators for Marine Engines

The hydraulic actuators from HEINZMANN subsidiary REGULATEURS EUROPA have made a name for themselves in the market for decades and are just as popular with original equipment manufacturers as they are for retrofit solutions. They have a certificate from the most important classification societies in the shipping sector.

Reihe Aktuatoren hydraulisch Marine

  • Excellent control management
  • Reliability
  • Endurance

RE 2231-1GH

Proportional actuator featuring a mechanical-hydraulic governor as a ballhead backup in the case of a power failure or controller fault, providing various manual speed setting options. Popular actuator model for marine propulsion engines and other applications where common mode failures must be minimised.

Technical data

  • Output range ft lbf: 8, 12, 15, 25, 34, 40
  • Output range Nm: 11, 16, 20, 34, 46, 54

More information

Data sheet

Engine Types & Applications

Diesel Engines Diesel Engines
Ships Ships
Gensets Gensets

RE 2222-3G

Proportional actuator featuring a two-stage, high stiffness, backlash-free hydraulic servo mechanism for best possible control on larger engines requiring increased work outputs. Option for start/boost pressure fuel limiter and/or a mechanical-hydraulic governor as a ballhead backup.

Technical data

  • Output range ft lbf: 60, 80
  • Output range Nm: 81, 108

More information

Data Sheet

Engine Types & Applications

Diesel Engines Diesel Engines
Ships Ships
Gensets Gensets

RE 2223-3G

Proportional actuator featuring a two-stage, high stiffness, backlash free hydraulic servo mechanism for best possible control on large medium-speed engines. ption for start/boost pressure fuel limiter and/or a mechanical hydraulic governor as a ballhead backup.

Technical data

  • Output range ft lbf: 120, 200, 250
  • Output range Nm: 163, 271, 339





Engine Types & Applications

Diesel Engines Diesel Engines
Ships Ships
Gensets Gensets
loading...

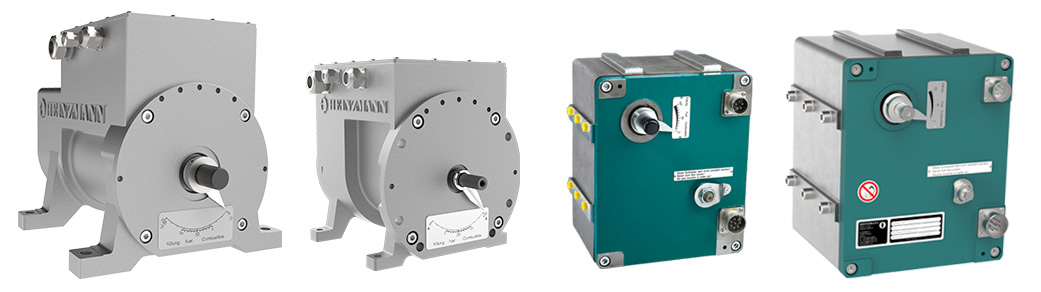

Electric Actuators for Marine Engines

StG EC 250

StG EC 40

StG 64 / StG 90

StG 180

Electric Actuators for Marine Engines

HEINZMANN actuators have proven themselves for decades, especially in marine propulsion engines. All actuators have a certificate from the most important classification societies in the shipping sector.

Reihe Aktuatoren Elektrisch Marine

  • Tried-and-tested
  • Reliable
  • Durable

STG EC 250

High-performance positioner with fast response, regardless of sense of rotation or shaft position.

Technical data

  • TorqueMAX: 250 Nm
  • Rotation: 82°

More informationen

Technical Drawing

Data Sheet



Engine Types & Applications

Diesel Engines Diesel Engines
Dual Fuel Engines Dual Fuel Engines
Ships Ships
Industrial Vehicles Industrial Vehicles
Gensets Gensets

STG EC 40

High-performance positioner with fast response, regardless of sense of rotation or shaft position.

Technical data

  • TorqueMAX: 40 Nm
  • Rotation: 82°

More information

Technical Drawing

Data Sheet



Engine Types & Applications

Diesel Engines Diesel Engines
Dual Fuel Engines Dual Fuel Engines
Industrial Vehicles Industrial Vehicles
Gensets Gensets

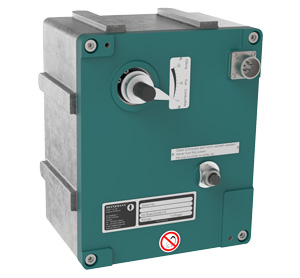

StG 64 / StG 90

These powerful actuators have proven their worth in industrial engines and turbines and work together with digital HEINZMANN governors.

Technical data

  • TorqueMAX: 64 / 90 Nm
  • Rotation: 42°
  • Response time: 270 / 320 ms
  • Feedback: analogue

Engine Types & Applications

Diesel Engines Diesel Engines
Gas Engines Gas Engines
Turbines Turbines

StG 180

This extremely powerful actuator is ideal for both industrial engines and for turbines and is driven by digital HEINZMANN governors.

Technical data

  • TorqueMAX: 180 Nm
  • Rotation: 42°
  • Response time: 320 ms
  • Feedback: analogue

Engine Types & Applications

Diesel Engines Diesel Engines
Gas Engines Gas Engines
Turbines Turbines
